Structure of Human Excretory System

In humans, the excretory system consists of a pair of kidneys, one pair of ureters, a urinary bladder and a urethra.

Kidneys:

Kidneys are reddish brown, bean shaped structures situated between the levels of last thoracic and third lumbar vertebra close to the dorsal inner wall of the abdominal cavity. Each kidney of an adult human measures 10-12 cm in length, 5-7 cm in width, 2-3 cm in thickness with an average weight of 120-170 g.

Towards the centre of the inner concave surface of the kidney is a notch called hilum through which ureter, blood vessels and nerves enter. Inner to the hilum is a broad funnel shaped space called the renal pelvis with projections called calyces. The outer layer of kidney is a tough capsule. Inside the kidney, there are two zones, an outer cortex and an inner medulla.

Medulla:

The medulla is divided into a few conical masses (medullary pyramids) projecting into the calyces (sing.: calyx).

Cortex:

The cortex extends in between the medullary pyramids as renal columns called Columns of Bertini.

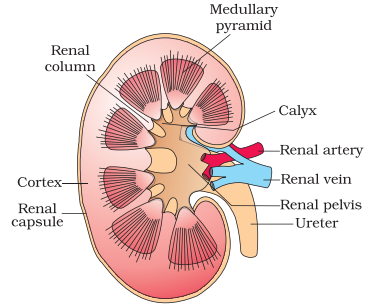

Longitudinal section of kidney

Nephrons:

Each kidney has nearly one million complex tubular structures called nephrons, which are the functional units. Each nephron has two parts – the glomerulus and the renal tubule.

Glomerulus:

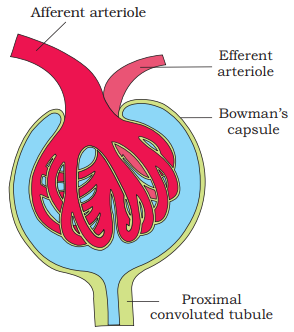

Glomerulus is a tuft of capillaries formed by the afferent arteriole – a fine branch of renal artery. Blood from the glomerulus is carried away by an efferent arteriole.

Renal Tubule:

The renal tubule begins with a double walled cup-like structure called Bowman’s capsule, which encloses the glomerulus. Glomerulus along with Bowman’s capsule, is called the malpighian body or renal corpuscle.

Proximal convoluted Tubule:

The tubule continues further to form a highly coiled network – proximal convoluted tubule (PCT).

Henle’s loop:

A hairpin shaped Henle’s loop is the next part of the tubule which has a descending and an ascending limb. The ascending limb continues as another highly coiled tubular region called distal convoluted tubule (DCT).

Distal Convoluted Tubule:

The DCTs of many nephrons open into a straight tube called collecting duct, many of which converge and open into the renal pelvis through medullary pyramids in the calyces.

The Malpighian corpuscle, PCT and DCT of the nephron are situated in the cortical region of the kidney whereas the loop of Henle dips into the medulla.

Cortical Nephrons:

In majority of nephrons, the loop of Henle is too short and extends only very little into the medulla. Such nephrons are called cortical nephrons.

Juxta Medullary Nephrons:

In some of the nephrons, the loop of Henle is very long and runs deep into the medulla. These nephrons are called juxta medullary nephrons.

Peritubular Capillaries:

The efferent arteriole emerging from the glomerulus forms a fine capillary network around the renal tubule called the peritubular capillaries.

Vasa Recta:

A minute vessel of this network runs parallel to the Henle’s loop forming a ‘U’ shaped vasa recta. Vasa recta is absent or highly reduced in cortical nephrons.

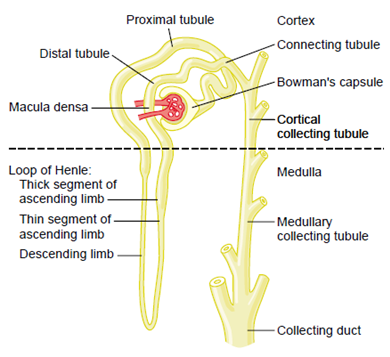

Diagrammatic representation of Nephron
